For even more Boing Boom Tschak.

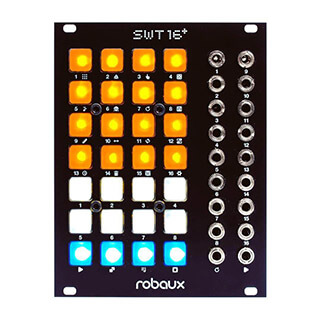

The Robaux SWT16+ is a 16-track eurorack trigger sequencer with up to 64 steps per track.

The Sweet Sixteen Plus is perfect for triggering drums, envelopes or modulation sources.

With the new member of the Robaux family, you can switch between eight different patterns. This will allow you to create even more exciting performances. You can store these patterns in up to 16 memory banks.

Program your tracks step by step. Play your tracks on the fly. Or just use the new Euclidean rhythm generator.

The new design has even more crazy flashing buttons! With the improved menu navigation, you can use the sequencer even more intuitive.

Randomize your tracks, move your steps or reverse your patterns. With these tools, you can discover entirely new rhythms. And the new Coin function adds even more variety to your beats.

Get your Sweet Sixteen Plus at:

Videos

This embedded video content is from YouTube.
Clicking through to the content will allow you to be tracked by www.youtube.com.

Learn more about robaux's privacy policy.

Show embedded content on this pageShow embedded content on all pages

Photos

MIDI Firmware

With the SWT16+ you can now use MIDI devices like drum machines or samplers.

Each track of the sequencer can now output an individual MIDI note to one of 16 MIDI channels.

These extended functions are made possible by an alternative firmware, which is based on the original firmware. However, to enable the new MIDI output, the previous functions Trigger Mod and Output Routing have been removed.

Check out the alternative firmware on Youtube in action.

Learn more about the alternative firmware in this manual.

To upgrade the firmware, go to the Github page and follow the instructions.

You can get a suitable adapter here:

However, you can also easily make the adapter yourself and adapt it to your own needs. Have a look at the schematic.

Resources

English Manual

Download the manual.

Version 0.50

Version 0.33

Japanese Manual

Beatsville Shop was kind enough to translate the User Manual into Japanese: Chotto mite!

Assembly Guide

Download the assembly guide.

Revision 3

Revision 2

Firmware & Updates

Download the assembly guide.

Get the latest firmware on GitHub.

Specsheet

Tracks

Number of Tracks: 16

Number of Steps per Track: up to 64

Patterns

Number of Presets: 16

Number of Patterns per Preset: up to 8

Inputs

1 x Clock In

1 x Reset In

Outputs

16 x Trigger Out

User interface

28 x backlight silicon button pads

Other

Width: 20HP

Requires a ±12V eurorack supply.
