Bienvenue dans le tripot!

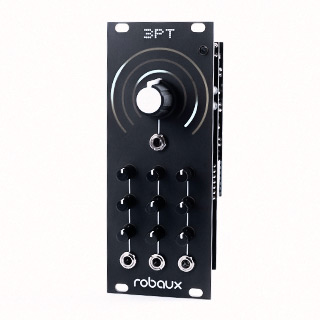

The Robaux 3PT is a multimode three-channel control voltage generator.
The handy knob with the triple ring-shaped voltage indicator makes the module the ideal performance tool.
The Tripot has three control voltage channels which can be adjusted with three parameter trimmers.
Instead of using the big knob, the device can also be controlled via the CV input.
The module offers seven different modes. These include a performance tool, chord generator, random generator, quantizer, sequencer or LFO.
Get your Tripot at:
Videos
This embedded video content is from YouTube.
Clicking through to the content will allow you to be tracked by www.youtube.com.
Learn more about robaux's privacy policy.
Photos
Resources
English Manual
Japanese Manual
Beatsville Shop was kind enough to translate the User Manual into Japanese: Chotto mite!
Assembly Guide
Specsheet
Inputs
1 x CV In, unipolar 5V
Outputs
3 x CV Out, unipolar 5V
User interface
3 x ring-shaped led display
1 x push button
1 x big knob
9 x trimmers
Other
Width: 10HP
Requires a ±12V eurorack supply.
